TIR300CU Copper Composite Carbon Nano Coating Thermal Conductive Graphite Sheet
TIR™300CU Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.
Feature
> Good thermal conductive: 320W/mK
> Easy to assemble
> Ultra-thin type
> Low thermal resistance
> RoHS compliant
Application
> PDP,LCD TV,Set top box
> Laptop,Notebook,Projector
> Mobile phone,Hand‐held devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
| Typical Properties of TIR™300CU series |
| Product Name | TIR™360CU-T2 | TIR™380CU-T2 | Test Method |
| Colour | Black |
| Material | Copper composite carbon nano coating |
| Total Thickness | 0.060 mm | 0.080 mm | ASTM D751 |
| Copper foil thickness | 0.030mm | 0.050mm | ASTM D751 |
| Single-sided coating thickness | 0.015mm | 0.015mm | ASTM D751 |
| Thickness Tolerance | +/- 10% | +/- 10% | ASTM D751 |
| Density | 2.7 g/cc | 2.7 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40℃~ 400℃ | ****** |
| Volume Resistivity | 6.3X10^9 Ohm-meter | ASTM D257 |
| Tensile Strength | 30psi | 40psi | ASTM D412 |
| Typical Thermal Conductivit (In Z axis) | 140W/m-K | 140W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 320W/m-K | 3200W/m-K | ASTM D5470 |
| Thermal Resistance @100psi | 0.075 (in²℃/W) | 0.100(in²℃/W) | ASTM D5470 |
Standard Sheets Sizes : 500mm X 50m
TIR™ 300CU series Individual die cut shapes can be supplied.
Consult the factory alternate thickness
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic, Silicone Rubber,Silicone Foams, Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contrac.
|
|

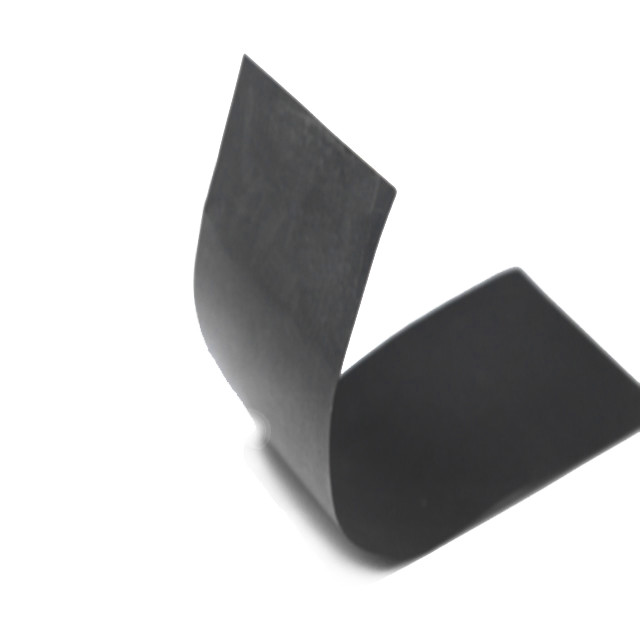

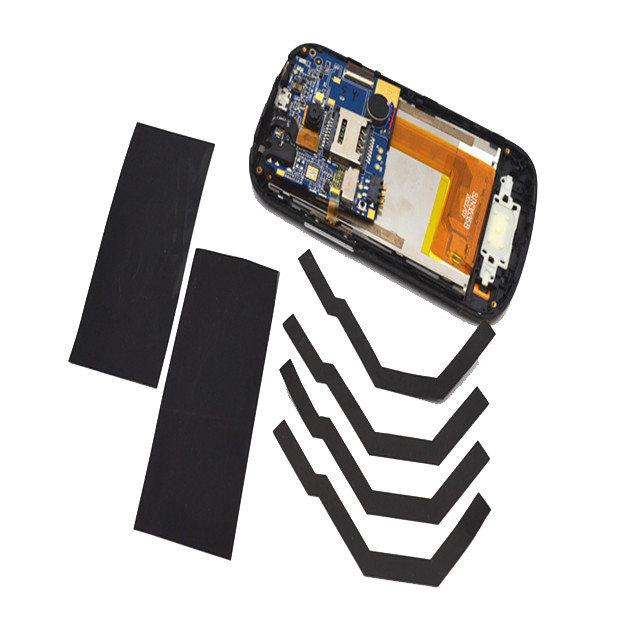

TIR300CU Copper Composite Carbon Nano Coating Thermal Conductive Graphite Sheet Images
|
