TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing

Name: TCP10001PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing
Brand: Ziitek
Price: 0.1 USD

China TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing wholesale

Brand Name : Ziitek

Model Number : TCP100-01PP

Certification : UL and RoHs

Place of Origin : Vietnam

MOQ : 10KG

Price : 0.1-10 USD/KG

Payment Terms : T/T

Supply Ability : 1000000KG/month

Delivery Time : 3-6 work days

Packaging Details : 25kg/bag

Products name : Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing

Material : Nylon

Color : White

Heat Deflection Temperature : 130℃

Application : LED Light Housing

Keywords : Nylon Heat Conductive Plastic

Thermal Conductivity : 0.8W/mK

Feature : Lighter Than Normal Aluminum Housing

Contact Now

TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing

TCP^TM100-07-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing ,

Application

TCP™100-01PP can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

> Good thermal conductivity:0.8W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting.
> Excellent flexibility in designing final products such as housings.

Typical Properties of TCP^TM100-01PP
Items	Test method	Unit	Typical data
Physical Properties
Material	*****		Nylon
Color	Visual	*****	White
Melt index	ASTM 1238	g/10min	14.73
Specific Gravity	ASTM D792	g/cm3	1.55
Shrinkage	ASTM D955	%	1.3
Mechanical Properties
Tensile Strength	ASTM D638	MPa	9.92
Flexural Strength	ASTM D790	MPa	38
Flexural Modulus	IASTM D638	MPa	3900
Impact Strength, notched	ASTM D256	kJ/m²	8.9
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	KV/mm	>10000
Dielectric Constant, 1MHz	ASTM D150	*****	3.1
Volume Resistivity	ASTM D257	Ohm-meter	7.0 X 10¹²
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	130
Thermal Conductivity Throngh Plane	ASTM E5470	W/m-K	0.8
Flame retardancy	Min. thick. 1.0mm	Class	V-0

TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

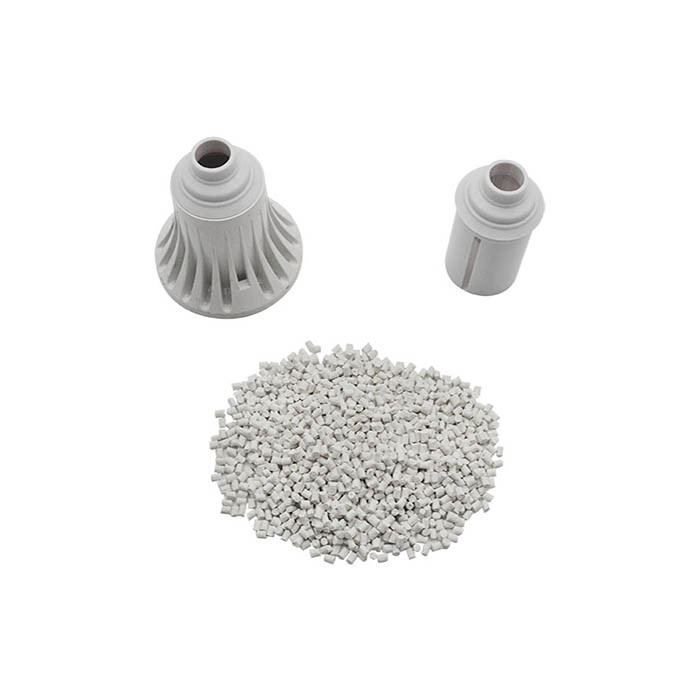

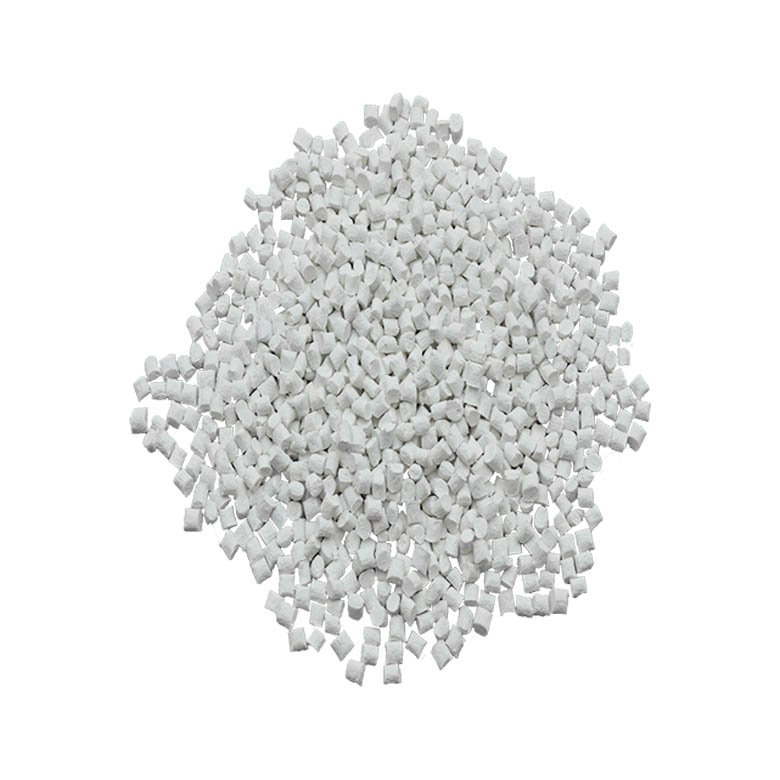

TCP100-01PP Nylon Heat Conductive Plastic High Performance Low Weight For LED Housing Images
